01 / 05
Current · Wires & Pipes
Conduit & Casing
The path every wire takes.

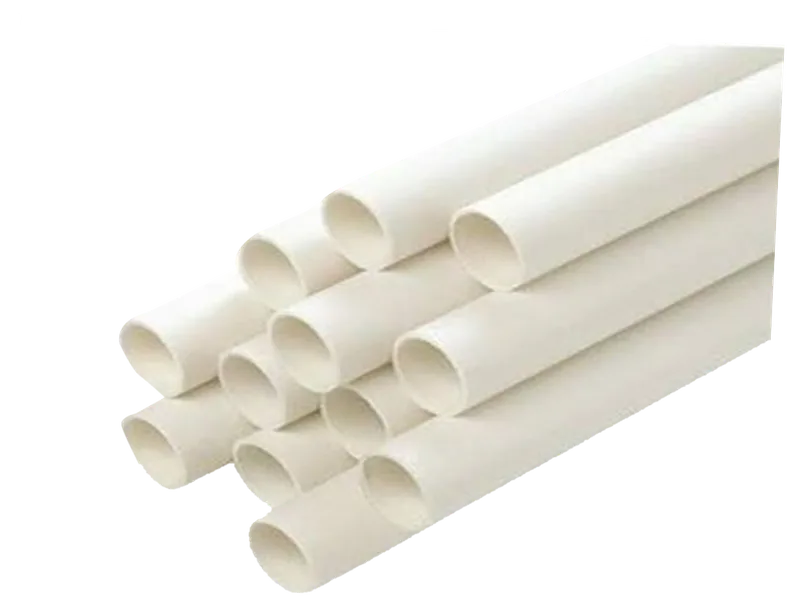

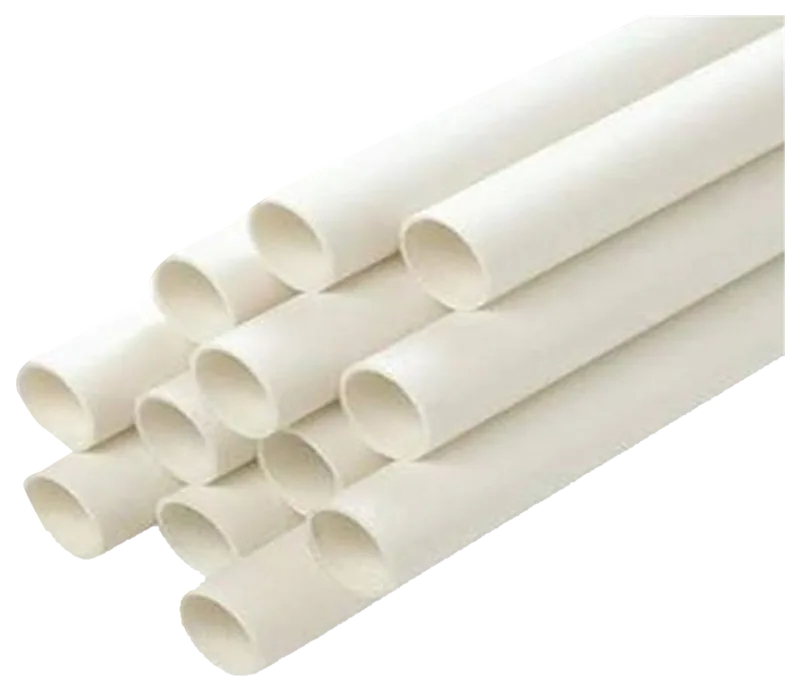

Stone Series PVC conduit in 20 and 25 mm — extra light, light, medium and heavy — Amaze and standard conduit, corrugated flexible pipe from 16 to 50 mm, casing-capping and the bends, saddles, junction boxes and clips that finish the job.
- Sizes
- 16–50 mm
- Series
- 6
- Variants
- 58
Where it goes
- Concealed wiring
- Surface wiring
- Projects
Series
Ratings such as lumens, IP and warranty are on each product's pack and datasheet.
6 series · 58 variants
| Code | Product | Specs | Enquire |
|---|---|---|---|
| 45048 | Samaksh PVC Pipe Extra Light 20 mm20 mm | 20 mm | Enquire |
| 45058 | Samaksh PVC Stone Pipe 20 mm Heavy20 mm | 20 mm | Enquire |
| 45055 | Samaksh PVC Stone Pipe 20 mm Light20 mm | 20 mm | Enquire |
| 45056 | Samaksh PVC Stone Pipe 20 mm Medium20 mm | 20 mm | Enquire |
| 45049 | Samaksh PVC Pipe Extra Light 25 mm25 mm | 25 mm | Enquire |
| 45059 | Samaksh PVC Stone Pipe 25 mm Heavy25 mm | 25 mm | Enquire |
| 45054 | Samaksh PVC Stone Pipe 25 mm Light25 mm | 25 mm | Enquire |
| 45057 | Samaksh PVC Stone Pipe 25 mm Medium25 mm | 25 mm | Enquire |
Good to know
- Which size wire should I use for lights, sockets, AC and geyser?In Indian homes, 1.5 sq mm copper wire is typically used for lights and fans, 2.5 sq mm for general sockets, 4 sq mm for heavy loads such as air conditioners and water heaters, and 6–10 sq mm for the main supply depending on the total connected load. Use multi-strand copper with FR or FR-LSH insulation, and size every circuit with its MCB following IS 732.Read the guide →
- Which PVC conduit pipe should I use for house wiring?Use medium-gauge (MMS) rigid PVC conduit for most concealed wiring in walls, heavy-gauge (HMS) inside concrete slabs and floors or wherever it could be crushed, and light gauge only for low-risk surface runs. 20 mm conduit suits switchboard drops and lighting circuits; 25 mm suits main runs and circuits with more wires. Don't fill a conduit beyond about 40% of its internal area.Read the guide →
